ETF Semi-automatic rolling machine M 5720

Maximum flexibility in handling materials

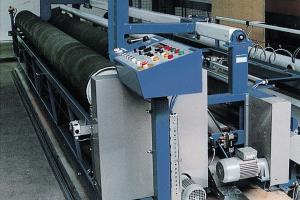

The ETF semi-automatic rolling machine can be installed at the end of any floorcovering production line. It produces either large or small rolls, rolled pile in or pile out. Whatever needed at any given time. The special design of this rolling machine ensures perfectly straight and tightly-wound rolls. The rolling process must be started manually by one or two operators.

The semi-automatic rolling machine can be modified for usage with artificial grass or very light weight materials. For that purpose it will be fitted with a centre drive system designed to apply extra torque during the rolling process. This ensures the creation of a hard, round roll which makes handling and transportation of the roll a lot easier.

Download brochure here

Features & options

• Electronic (optical) length measuring device M 2620 / M 2622
• Bi-directional fast cross cutter
M 2410
• Slitting unit(s) M 2422
 Automatic feed up of material between main rollers
• Both rollers independent driven for tight rolling and speeds up to 100 m/min.
• Electronically width guided
• Automatic tube dispenser
• Pneumatically pivoting side guiders
• Centre drive system or push roller to create tight rolls of non wovens or artificial grass
• Foil dispenser for on-line wrapping
• Pneumatic roll ejection
